    LtAP mini kit

    1 062,00 kr
    Exkl. moms 1-3

    Small weatherproof wireless access point with International LTE modem, two SIM slots and GPS

    Mängdrabatter

    KvantitetRabattDu Sparar
    205%Upp till 1 062,00 kr
    Kvantitet
    I Lager



    Order vardag före 12.00 går normalt samma dag med Postnord. Fri frakt över 4000kr



    All retur ska godkännas av oss sänd mail till info@shlab.se

    The LtAP mini LTE kit is a small waterproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity on International LTE bands 1,2,3,7,8,20,38 and 40.

    Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.

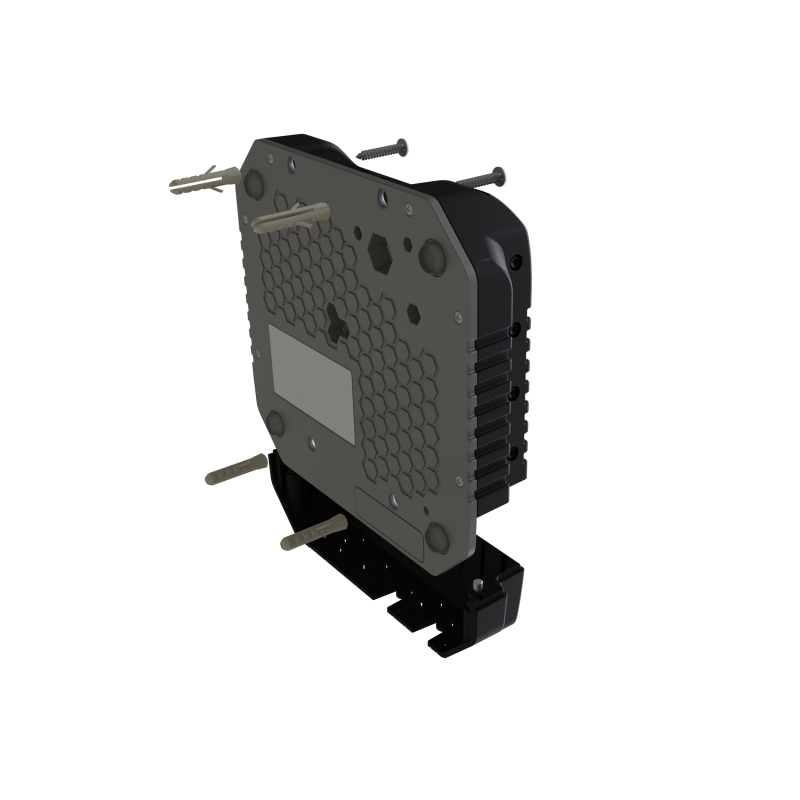

    LtAP mini has a special enclosure with with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. External GPS antenna is available for ordering separately (not included, product code ACGPSA).

    The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.

    Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.


    Specifications

    Details
    Product codeRB912R-2nD-LTm
    ArchitectureMIPSBE
    CPUQCA9531
    CPU core count1
    CPU nominal frequency650 MHz
    Dimensions139 x 77 x 28,5 mm
    License level4
    Operating SystemRouterOS
    Size of RAM64 MB
    Storage size16 MB
    Storage typeFLASH
    Tested ambient temperature-40°C .. +70°C

    Powering

    Details
    Max Power consumption4W
    MicroUSB input Voltage5-5 V
    PoE in802.3af/at
    PoE in input Voltage10-57 V
    Number of DC inputs3 (DC jack, PoE-IN, MicroUSB)
    DC jack input Voltage8-30 V

    Mobile

    Details
    2G CategoryClass12
    3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink)
    LTE Category4 (150Mbps Downlink, 50Mbps Uplink)
    LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
    LTE TDD bands38 (2600MHz) / 40 (2300MHz)

    Wireless

    Details
    Wireless 2.4 GHz number of chains2
    Wireless 2.4 GHz standards802.11b/g/n
    Antenna gain dBi for 2.4 GHz1.5
    Wireless 2.4 GHz chip modelQCA9531

    Ethernet

    Details
    10/100 Ethernet ports1

    Peripherals

    Details
    Number of SIM slots2 Modem (Mini SIM)
    MiniPCI-e slots1
    Serial portRS232
    Number of USB ports1
    USB Power ResetYes
    USB slot typemicroUSB type AB
    Max USB current (A)1

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71

    Ethernet test results

    RB912R-2nD-LTmQCA9531 100M one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3173.688.9
    Bridging25 bridge filter rules8.198.423.596.370.936.3
    Routingnone (fast path)8.198.423.596.3160.882.3
    Routing25 simple queues8.198.423.596.390.846.5
    Routing25 ip filter rules8.198.423.596.343.222.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    Included parts

    MikroTik
    m RB912R-2nD-LTm&R11e-LTE
