LHG LTE kit
    • LHG LTE kit

    LHG LTE kit

    1 677,20 kr
    Exkl. moms 1-3

    LHG 2G/3G/4G/LTE High gain 17dBI CPE for very remote areas, International bands

    Kvantitet
    Sista produkten i lager



    Order vardag före 12.00 går normalt samma dag med Postnord. Fri frakt över 4000kr



    All retur ska godkännas av oss sänd mail till info@shlab.se

    LHG LTE kit

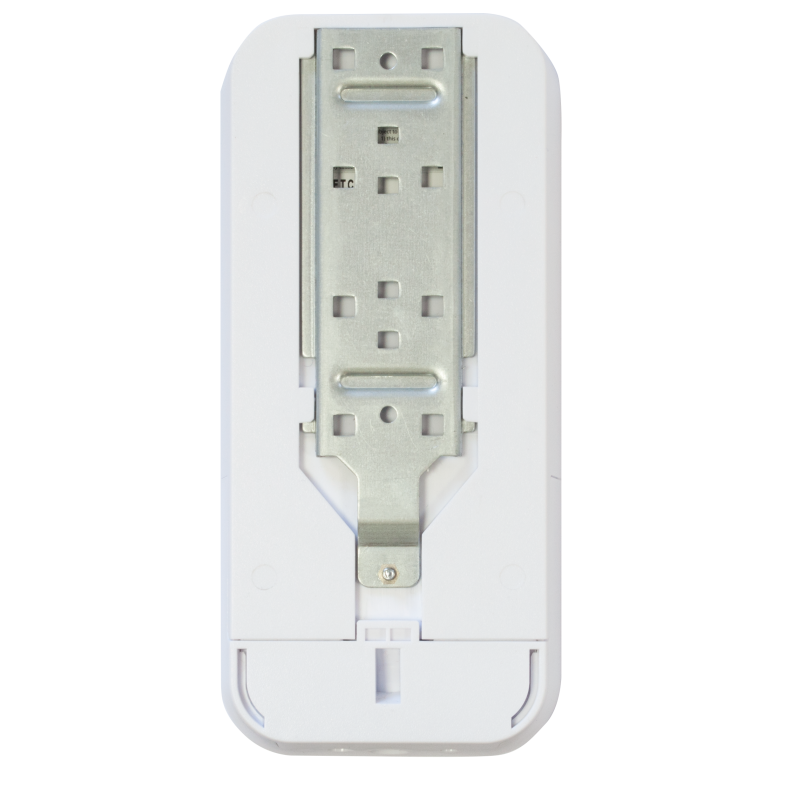

    The LHG LTE kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

    The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.

    RBLHGR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.

    Specifications

    Details
    Product codeRBLHGR&R11e-LTE
    ArchitectureMIPSBE
    CPUQCA9531
    CPU core count1
    CPU nominal frequency650 MHz
    Dimensions140 x 140 x 103 mm
    License level3
    Operating SystemRouterOS
    Size of RAM64 MB
    Storage size16 MB
    Storage typeFLASH
    Tested ambient temperature-40°C .. +60°C

    Powering

    Details
    PoE in802.3af/at
    PoE in input Voltage12-57 V
    Number of DC inputs1 (PoE-IN)
    Max power consumption6 W

    Mobile

    Details
    2G CategoryClass12
    3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink)
    LTE Category4 (150Mbps Downlink, 50Mbps Uplink)
    LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
    LTE TDD bands38 (2600MHz) / 40 (2300MHz)

    Ethernet

    Details
    10/100 Ethernet ports1

    Peripherals

    Details
    Number of SIM slots1 Modem (Mini SIM)
    MiniPCI-e slots1

    Ethernet test results

    RBLHGR&R11e-LTEQCA9531 100M one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3173.688.9
    Bridging25 bridge filter rules8.198.423.596.370.936.3
    Routingnone (fast path)8.198.423.596.3160.882.3
    Routing25 simple queues8.198.423.596.390.846.5
    Routing25 ip filter rules8.198.423.596.343.222.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    Included parts

    MikroTik
    m RBLHGR&R11e-LTE
