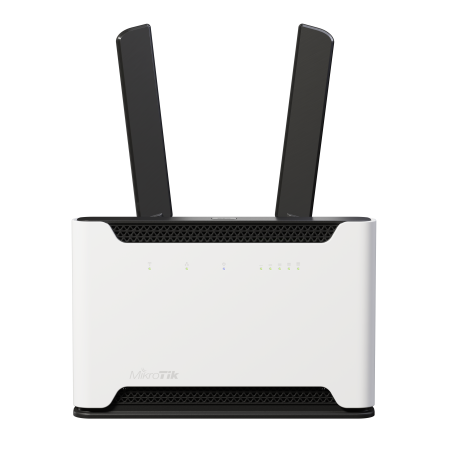

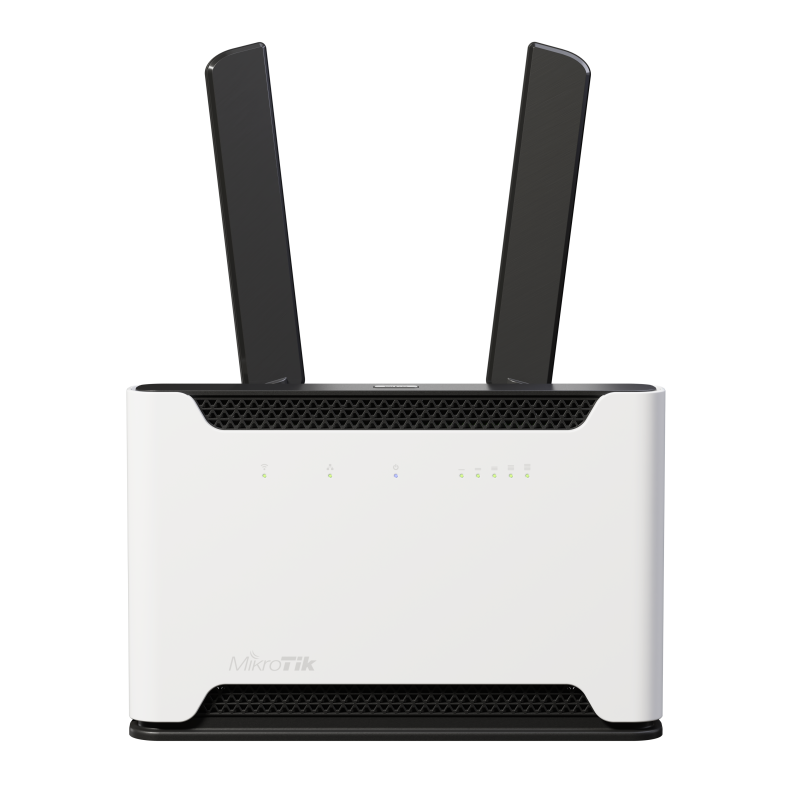

    Chateau 5G

    5 435,30 kr
    Exkl. moms 5-7

    One router to delight them all – introducing the ultimate home AP with ultra-fast LTE/5G support

    Kvantitet
    Kan förbeställas

      Leveransvillkor

    Vi använder DHL & Postnord för leveranser

    Chateau 5G s a high-speed, dual-band home access point with LTE/5G support – for really fast Internet anywhere, anytime. There are many options to choose from, depending on your needs: from CAT4 LTE up to the CAT20 LTE and the ultra-fast 5G. But LTE is not the only option – Chateau also features 5 x Gigabit Ethernet ports and a full size USB port.

    Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. For example, a client can simultaneously use the 2.4 GHz channel for all household mobile devices and reserve the 5 GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.

    Chateau can be customized: you can choose a variety of labels, we can print your branding, if necessary. And there is another great feature – you can use TR-069 technology to create a custom remote client management option. You can choose how much control your clients need and which features of the highly versatile RouterOS they get to use. Some operators use this to allow users to configure the router via the same web-page they use to pay bills, others restrict novice users from meddling with the settings to provide better browsing experience in the long run.

    Let’s make more clients happy with MikroTik Chateau 5G!

    Specifications

    Details
    Product codeD53G-5HacD2HnD-TC&RG502Q-EA
    ArchitectureARM 32bit
    CPUIPQ-4019
    CPU core count4
    Dimensions240 x 156 x 44 mm
    RouterOS license4
    Operating System RouterOS
    Size of RAM256 MB
    Storage size16 MB
    Storage typeFLASH
    MTBFApproximately 200'000 hours at 25C
    Tested ambient temperature-40°C to 70°C

    Powering

    Details
    Number of DC inputs1 (DC jack)
    DC jack input Voltage12-28 V
    FAN countPassive

    Mobile

    Details
    3G CategoryR8 (42.2Mbps Downlink, 5.76Mbps Uplink)
    3G bands6 (850 MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 19 (800 MHz) / 1 (2100MHz)
    LTE Category20 (2.0 Gbps Downlink, 200 Mbps Uplink)
    LTE FDD bands1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 18 (800 MHz) / 19 (800 MHz) / 20 (800MHz) / 26 (850MHz) / 28 (700MHz) / 32 (1500 MHz)
    LTE TDD bands38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) / 34 (2000 MHz)

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate300 Mbit/s
    Wireless 2.4 GHz number of chains2
    Wireless 2.4 GHz standards802.11b/g/n
    Antenna gain dBi for 2.4 GHz3
    Wireless 2.4 GHz chip modelIPQ-4019
    Wireless 2.4 GHz generationWi-Fi 4
    Wireless 5 GHz Max data rate867 Mbit/s
    Wireless 5 GHz number of chains2
    Wireless 5 GHz standards802.11a/n/ac
    Antenna gain dBi for 5 GHz4
    Wireless 5 GHz chip modelIPQ-4019
    Wireless 5 GHz generationWi-Fi 5

    Ethernet

    Details
    10/100/1000 Ethernet ports5

    Peripherals

    Details
    Number of SIM slots1 Modem (Micro SIM)
    Number of USB ports1
    USB Power ResetYes
    USB slot typeUSB type A
    Max USB current (A)1

    Other

    Details
    Mode buttonYes

    Certification & Approvals

    Details
    CertificationCE, EAC, ROHS

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s25-100
    11MBit/s25-94
    6MBit/s26-96
    54MBit/s23-78
    MCS026-96
    MCS722-73
    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s26-96
    54MBit/s22-80
    MCS026-96
    MCS721-75
    MCS919-70

    Ethernet test results

    D53G-5HacD2HnD-TC&RG502Q-EAIPQ-4019 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)162,51973.4469,91924.71488,4762.1
    Bridging25 bridge filter rules162,51973.4351,21438.5352,1180.3
    Routingnone (fast path)162,51973.4469,91924.71488,4762.1
    Routing25 simple queues162,51973.4468,61919.4493,4252.6
    Routing25 ip filter rules162,51973.4222,8912.6227,4116.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    Included parts

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

    m D53G-5HacD2HnD-TC&RG502Q-EA
