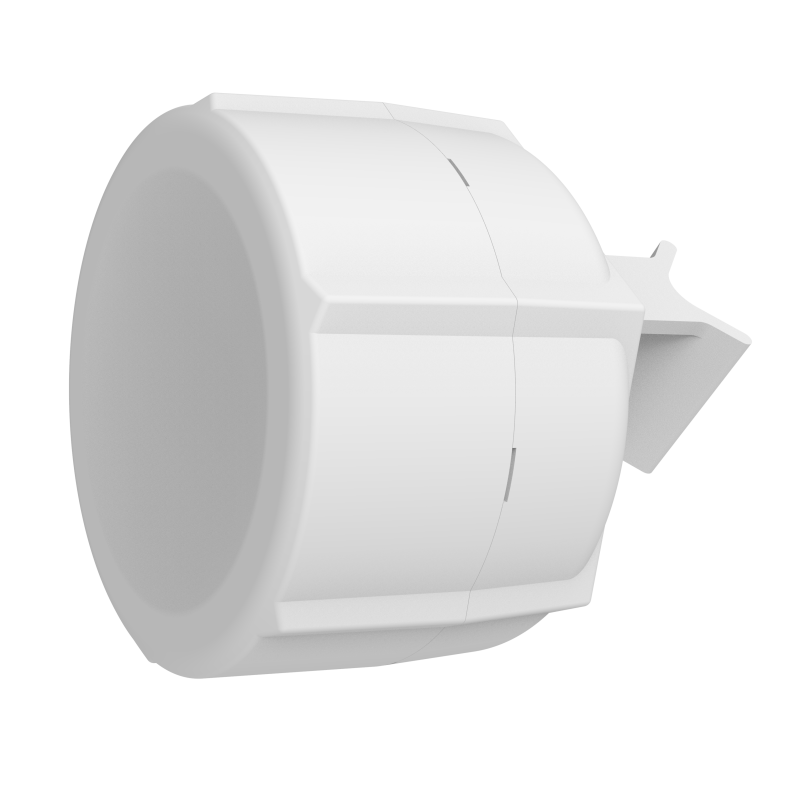

    SXT LTE6 kit

    1 664,39 kr
    Exkl. moms 2-3

    The evolution of affordable connectivity in remote areas

    Kvantitet
    I Lager

      Leveransvillkor

    Vi använder DHL & Postnord för leveranser

    1634,39SXT LTE6 kit is a device for remote locations that are within cellular network coverage. Due to its advanced LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones fail.

    The new SXT LTE6 features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

    The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. It also has two Micro SIM slots for backup link. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant.

    Specifications

    Details
    Product codeRBSXTR&R11e-LTE6
    ArchitectureMIPSBE
    CPUQCA9531
    CPU core count1
    CPU nominal frequency650 MHz
    RouterOS license3
    Size of RAM64 MB
    Storage size16 MB
    Storage typeFLASH
    MTBFApproximately 200'000 hours at 25C
    Tested ambient temperature-30°C to 60°C

    Powering

    Details
    Number of DC inputs1 (PoE-IN)
    Max power consumption21 W
    Max power consumption without attachments7 W
    FAN countPassive
    PoE in802.3af/at
    PoE in input Voltage12-57 V

    PoE-out

    Details
    PoE-out portsEther2
    PoE outPassive PoE up to 57V
    Max out per port output (input < 30 V)600 mA
    Max out per port output (input > 30 V)400 mA
    Max total out (A)600 mA

    Mobile

    Details
    2G CategoryClass12
    2G bands2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
    3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
    3G bands1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
    LTE Category6 (300Mbit/s Downlink, 50Mbit/s Uplink)
    LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
    LTE TDD bands38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

    Ethernet

    Details
    10/100 Ethernet ports2

    Peripherals

    Details
    Number of SIM slots2 Modem (Micro SIM)
    MiniPCI-e slots1

    Other

    Details
    Mode buttonYes

    Certification & Approvals

    Details
    CertificationCE, EAC, ROHS
    IPIP54

    Included parts

    m RBSXTR&R11e-LTE6
