    cAP

    389,03 kr
    Exkl. moms 5-7

    Ceiling AP, Dual-Chain 2.4GHz, 650MHz CPU, RouterOS L4, 802.3at/af support

    Kvantitet
    Kan förbeställas

      Leveransvillkor

    Vi använder Postnord för leveranser

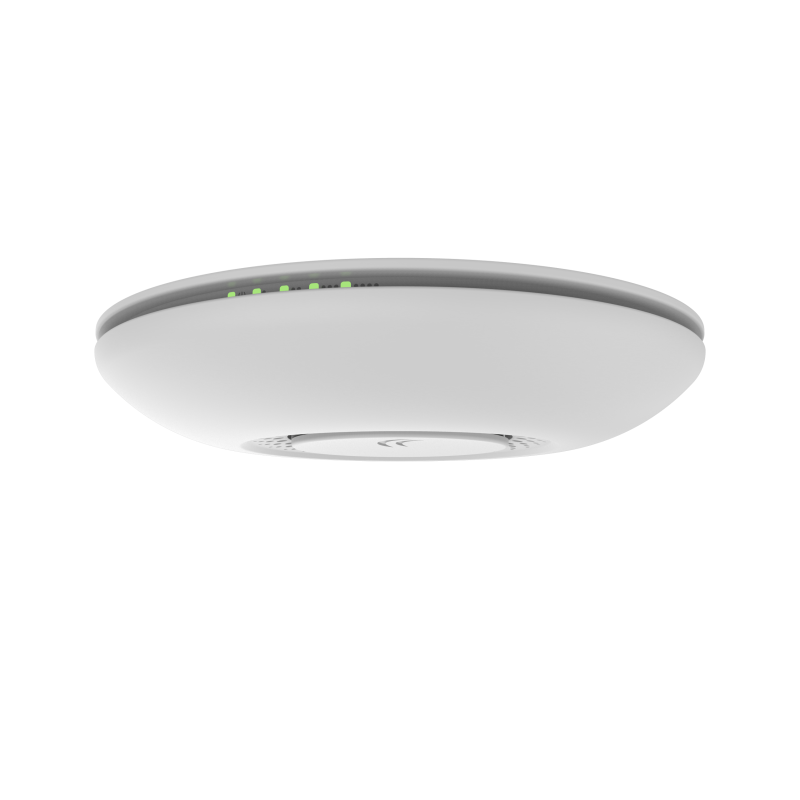

    RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.

    cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.

    Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.

    Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.

    Specifications

    Details
    Product codeRBcAP2nD
    ArchitectureMIPSBE
    CPUQCA9533
    CPU core count1
    CPU nominal frequency650 MHz
    Dimensions185mm diameter, 31mm height
    RouterOS license4
    Operating System RouterOS
    Size of RAM64 MB
    Storage size16 MB
    Storage typeFLASH
    MTBFApproximately 100'000 hours at 25C
    Tested ambient temperature-40°C to 70°C

    Wireless capabilities

    Details
    Wireless 2.4 GHz Max data rate300 Mbit/s
    Wireless 2.4 GHz number of chains2
    Wireless 2.4 GHz standards802.11b/g/n
    Antenna gain dBi for 2.4 GHz2
    Wireless 2.4 GHz chip modelQCA9533
    Wireless 2.4 GHz generationWi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports1

    Powering

    Details
    Number of DC inputs1 (PoE-IN)
    Max power consumption4 W
    FAN countPassive
    PoE in802.3af/at
    PoE in input Voltage11-57 V

    Certification & Approvals

    Details
    CertificationCE, FCC, IC, EAC, ROHS
    IPIP20

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71

    Included parts

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

    m RBcAP-2nD
