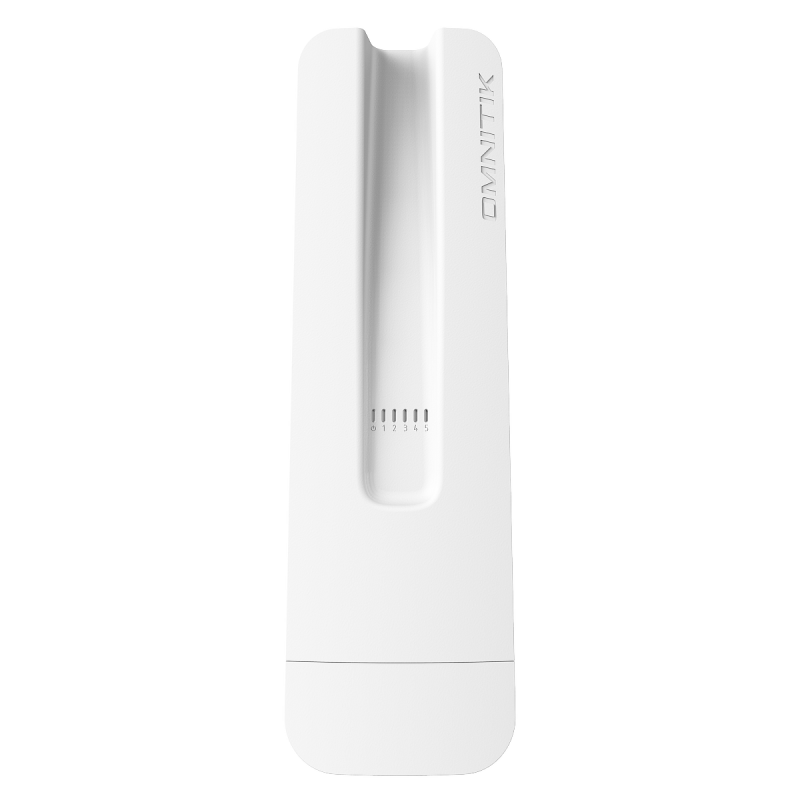

OmniTIK 5 PoE ac
7.5dBi Integrated AP, 5GHz Dual chain with 802.11ac support, 5x Gigabit Ethernet ports
Vi använder Postnord för leveranser
We are glad to introduce a significant upgrade to our popular OmniTIK 5GHz access points!
OmniTIK 5 ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.
- OmniTIK 5 ac US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- OmniTIK 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
|CPU core count||1|
|CPU nominal frequency||720 MHz|
|Dimensions||416 x 129 x 58 mm|
|Size of RAM||128 MB|
|Storage size||16 MB|
|MTBF||Approximately 200'000 hours at 25C|
|Tested ambient temperature||-40°C to 70°C|
|Number of DC inputs||1 (PoE-IN)|
|Max power consumption||14 W|
|PoE in||Passive PoE|
|PoE in input Voltage||12-57 V|
|Wireless 5 GHz Max data rate||867 Mbit/s|
|Wireless 5 GHz number of chains||2|
|Wireless 5 GHz standards||802.11a/n/ac|
|Antenna gain dBi for 5 GHz||7.5|
|Wireless 5 GHz chip model||QCA9892|
|Wireless 5 GHz generation||Wi-Fi 5|
|10/100/1000 Ethernet ports||5|
|Number of USB ports||1|
|USB Power Reset||Yes|
|USB slot type||USB type A|
|Max USB current (A)||1|
Certification & Approvals
|Certification||CE, FCC, IC, EAC, ROHS|
|5 GHz||Transmit (dBm)||Receive Sensitivity|
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
