    RB3011UiAS-RM

    1 389,38 kr
    Exkl. moms
    2-3

    1U rackmount, 10xGigabit Ethernet, SFP, USB 3.0, LCD, PoE out on port 10, 2x1.4GHz CPU, 1GB RAM, RouterOS L5

    Kvantitet
    I Lager

      Leveransvillkor

    Vi använder Postnord för leveranser

    The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.

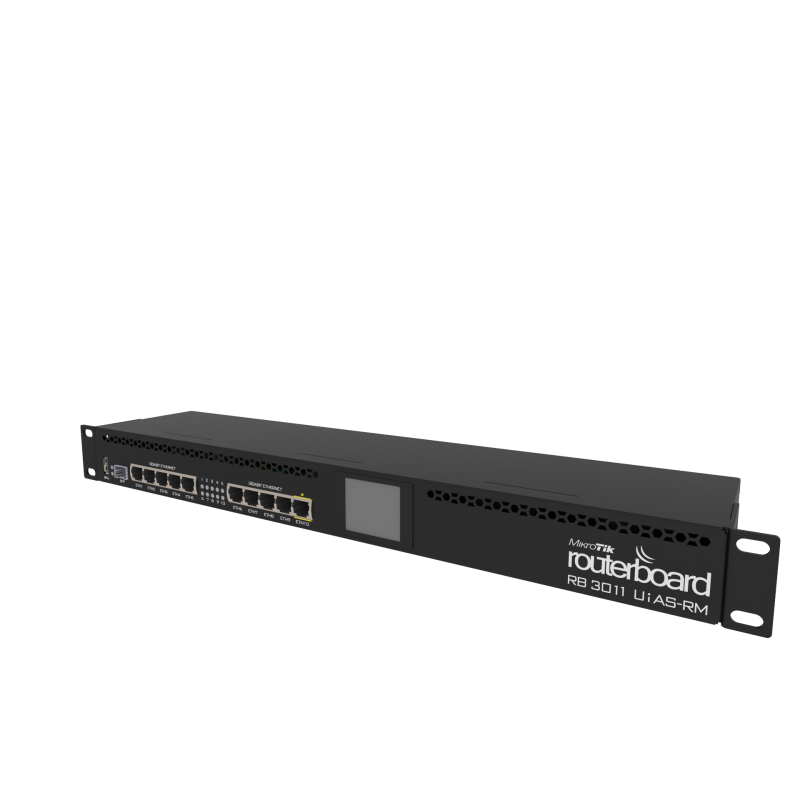

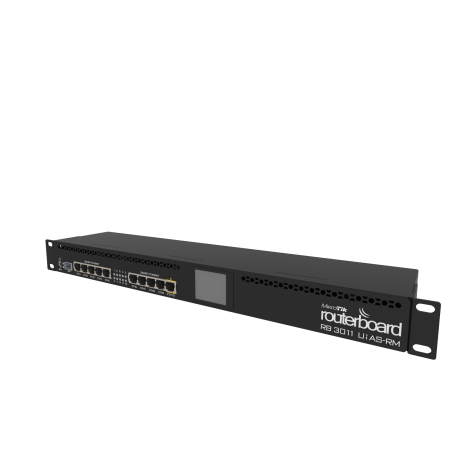

    RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.

    Specifications

    Details
    Product codeRB3011UiAS-RM
    ArchitectureARM 32bit
    CPUIPQ-8064
    CPU core count2
    CPU nominal frequency1.4 GHz
    Dimensions443 x 92 x 44 mm
    RouterOS license5
    Operating System RouterOS
    Size of RAM1 GB
    Storage size128 MB
    Storage typeNAND
    MTBFApproximately 200'000 hours at 25C
    Tested ambient temperature-20°C to 70°C
    IPsec hardware accelerationYes

    Powering

    Details
    Number of DC inputs2 (DC jack, PoE-IN)
    DC jack input Voltage10-30 V
    Max power consumption30 W
    Max power consumption without attachments10 W
    FAN countPassive
    PoE inPassive PoE
    PoE in input Voltage10-30 V

    PoE-out

    Details
    PoE-out portsEther10
    PoE outPassive PoE
    Max out per port output (input < 30 V)600 mA
    Max total out (A)600 mA

    Ethernet

    Details
    10/100/1000 Ethernet ports10

    Fiber

    Details
    SFP ports1

    Peripherals

    Details
    Serial console portRJ45
    Number of USB ports1
    USB Power ResetYes
    USB slot typeUSB 3.0 type A
    Max USB current (A)1

    Other

    Details
    PCB temperature monitorYes
    Voltage MonitorYes

    Certification & Approvals

    Details
    CertificationCE, EAC, ROHS
    IPIP20

    Included parts

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
