    RB1100x4

    2 167,43 kr
    Exkl. moms
    5-7

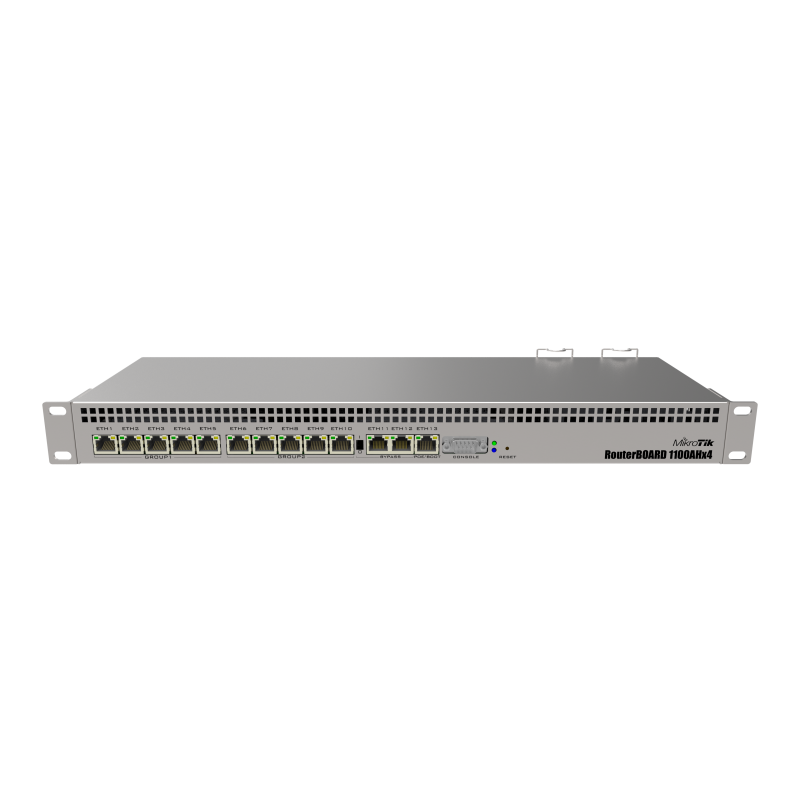

    Powerful 1U rackmount router with 13x Gigabit Ethernet ports

    Kvantitet
    Kan förbeställas

      Leveransvillkor

    Vi använder Postnord för leveranser

    Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

    Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

    Specifications

    Details
    Product codeRB1100x4
    ArchitectureARM 32bit
    CPUAL21400
    CPU core count4
    CPU nominal frequency1.4 GHz
    Dimensions443 x 148 x 44 mm
    RouterOS license6
    Operating System RouterOS
    Size of RAM1 GB
    Storage size128 MB
    Storage typeNAND
    MTBFApproximately 200'000 hours at 25C
    Tested ambient temperature-40°C to 70°C
    IPsec hardware accelerationYes

    Powering

    Details
    Number of AC inputs2
    AC input range100-240
    Number of DC inputs2 (2-pin terminal, PoE-IN)
    2-pin terminal input Voltage-48, 12-57 V
    Max power consumption20 W
    FAN countPassive
    PoE in802.3af/at
    PoE in input Voltage20-57 V

    Ethernet

    Details
    10/100/1000 Ethernet ports13

    Peripherals

    Details
    Memory card typemicroSD
    Memory Cards1
    Serial console portRS232

    Other

    Details
    Current MonitorYes
    PCB temperature monitorYes
    Voltage MonitorYes
    Mode buttonYes

    Certification & Approvals

    Details
    CertificationCE, EAC, ROHS
    IPIP20

    Included parts

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
