1U rackmount, 1x Gigabit Ethernet, 8xSFP+ cages, LCD, 72 cores x 1GHz CPU, 16GB RAM, up to 120 million packets per second, 80Gbps throughput, RouterOS L6
Vi använder DHL & Postnord för leveranser

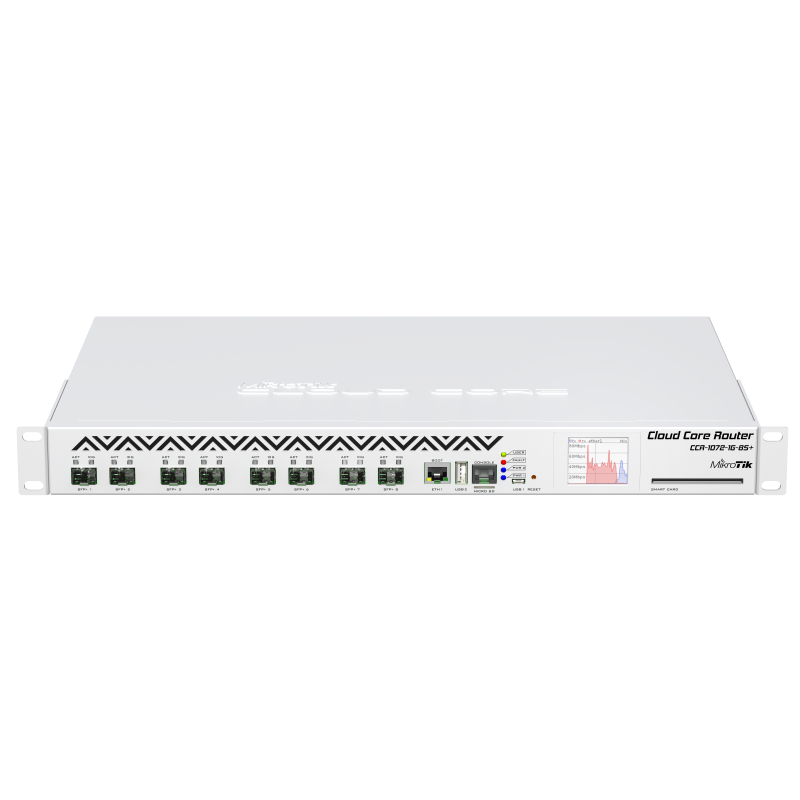

Our new flagship router, the CCR1072, is powered by a Tilera 72 core CPU, each core is clocked at 1GHz, and to fully utilize this power, the CCR1072 is equipped with eight independently connected 10G SFP+ ports and single Ethernet port for management purposes.
The unit comes equipped with installed RouterOS L6, 16GB of built in ECC RAM, touchscreen color LCD, two removable (hotplug) power supplies for redundancy, smart card slot, microUSB, regular size USB, microSD and 2x M.2 slots for additional storage.
Thanks to the unique 72 core processor and ports that are directly connected to the CPU, CCR1072 is capable of over 120 million packets per second throughput.
|CPU core count||72|
|CPU nominal frequency||1 GHz|
|Dimensions||443 x 315 x 44 mm|
|Size of RAM||16 GB|
|Storage size||128 MB|
|MTBF||Approximately 200'000 hours at 25C|
|Tested ambient temperature||-20°C to 60°C|
|IPsec hardware acceleration||Yes|
|Number of AC inputs||2|
|AC input range||100-240|
|Max power consumption||125 W|
|10/100/1000 Ethernet ports||1|
|Memory card type||microSD, 2x M.2|
|Serial console port||RJ45|
|Number of USB ports||2|
|USB Power Reset||Yes|
|USB slot type||microUSB type AB; USB type A|
|Max USB current (A)||1|
|Smart card slot||Yes|
|CPU temperature monitor||Yes|
|PCB temperature monitor||Yes|
Certification & Approvals
|Certification||CE, EAC, ROHS|
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
