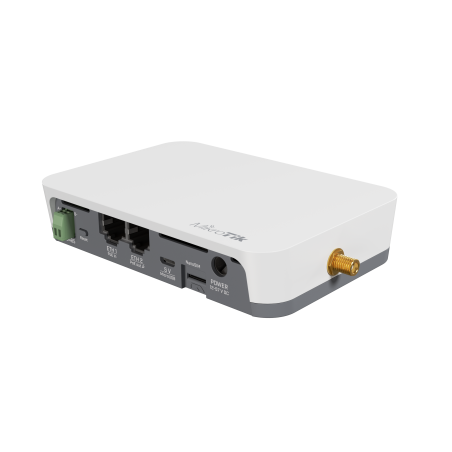

    KNOT LR8 kit

    2 059,98 kr
    Exkl. moms Leverans inom 2-5 dagar

    An out-of-the-box 863-870 MHz IoT Gateway solution for LoRa® technology. For ultimate versatility and cost-effectiveness. The first gateway with a CAT-M interface for LoRa®!

    Kvantitet
    Finns i lager

      Leveransvillkor

    Vi använder DHL & Postnord för leveranser

    We all know the struggle of managing so many devices with different interfaces and communication protocols.. You keep adding new solutions to your setup to keep up, but the older devices are still too good to let them go. How do you integrate all of them in a single system that will serve you right? Easy – you “tie” them together by using the KNOT!

    It doesn’t matter whether you have devices that are no longer in production, devices that came out this year, or even some custom solutions by your technician – the KNOT can handle them all!

    KNOT LR8 kit is an out-of-the-box IoT Gateway solution for LoRa® technology. It uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers. With the support of 8 different channels, Listen Before Talk (LBT) and spectral scan features this product will astound you with its enticing price point.

    It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and moisture sensors with only a few megabytes per day!

    KNOT features so many protocol support and connectivity options: 2.4 GHz wireless, Bluetooth, LoRa®, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!

    With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format. It has powerful filters for forwarding only relevant packets and ignoring others.

    This kit can even help you in the most unusual situations. Remember the part about onboard GPIOs? Those pins can be used to read all kinds of analog sensors, interact with a single-board computer or other custom electronics – hobbyist kits, D.I.Y. robotics... It’s like getting the whole Swiss Army instead of a Swiss Army knife!

    KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.

    Bring flexible low-cost connectivity to the most remote or tricky areas with the MikroTik KNOT!

    Specifications

    Details
    Product codeRB924iR-2nD-BT5&BG77&R11e-LR8
    ArchitectureMIPSBE
    CPUQCA9531
    CPU core count1
    CPU nominal frequency650 MHz
    RouterOS license4
    Operating SystemRouterOS
    Size of RAM64 MB
    Storage size128 MB
    Storage typeNAND
    MTBFApproximately 200'000 hours at 25C
    Tested ambient temperature-40°C to 70°C

    Powering

    Details
    MicroUSB input Voltage5 V
    Number of DC inputs3 (MicroUSB, PoE-IN, DC jack)
    DC jack input Voltage12-57 V
    Max power consumption23 W
    Max power consumption without attachments5 W
    Cooling typePassive
    PoE in802.3af/at
    PoE in input Voltage18-57 V

    PoE-out

    Details
    PoE-out portsEther2
    PoE out802.3af/at
    Max out per port output (input 18-30 V)650 mA
    Max out per port output (input 30-57 V)450 mA

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate300 Mbit/s
    Wireless 2.4 GHz number of chains2
    Wireless 2.4 GHz standards802.11b/g/n
    Antenna gain dBi for 2.4 GHz1.5
    Wireless 2.4 GHz chip modelQCA9531
    Wireless 2.4 GHz generationWi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports2

    Peripherals

    Details
    Number of SIM slots1 Modem (Nano SIM)
    MiniPCI-e slots1
    Serial console portRS485
    Number of USB ports1
    USB slot typemicroUSB type AB
    Max USB current (A)1

    Other

    Details
    PCB temperature monitorYes
    Voltage MonitorYes
    Bluetooth version5.2
    Bluetooth RF connector typeuUFL

    Certification & Approvals

    Details
    CertificationCE, EAC, ROHS
    IP20

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71

    Included parts

    RB924iR-2nD-BT5&BG77&R11e-LR8
