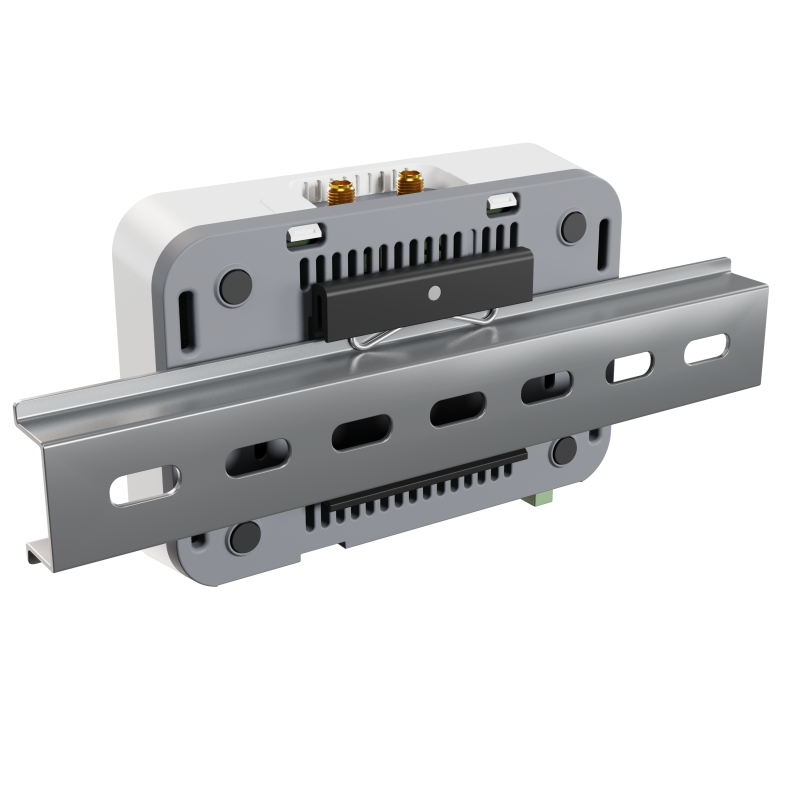

MikroTik/RouterBOARD RB912UAG-5HPnD
    • MikroTik/RouterBOARD RB912UAG-5HPnD

    RB912UAG-5HPnD

    842,84 kr
    Exkl. moms 1-3
    Kvantitet
    Sista produkten i lager



    Order vardag före 12.00 går normalt samma dag med Postnord. Fri frakt över 4000kr



    All retur ska godkännas av oss sänd mail till info@shlab.se

    The RB912UAG-5HPnD is a very versatile device. It is a small wireless router with an integrated high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.

    The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports

    Product specifications

    Details
    Product codeRB912UAG-5HPnD
    CPU nominal frequency600 MHz
    CPU core count1
    ArchitectureMIPS-BE
    Size of RAM64 MB
    10/100 Ethernet ports0
    10/100/1000 Ethernet ports1
    MiniPCI slots0
    MiniPCI-e slots1
    Wireless chip modelAR9342-BL1A
    Wireless standards802.11a/n
    Number of USB ports1
    Memory CardsNo
    Power Jack1
    802.3af supportNo
    Supported input voltage8 V - 30 V
    PoE inYes
    PoE outNo
    Voltage MonitorYes
    PCB temperature monitorYes
    CPU temperature monitorNo
    Dimensions105x105mm
    Operating SystemRouterOS
    Operating temperature range-40C to +70C
    License level4
    Antenna gain DBINo
    Current MonitorNo
    CPUAR9342-BL1A
    Max Power consumption14W at 24v
    SFP ports0
    SFP+ ports0
    USB slot typeUSB type A
    Number of chains2
    Serial portNone
    Suggested price$79.00

    Wireless specifications

    5 GHz
    TXRX
    6MBit/s30-96
    54MBit/s27-78
    MCS030-96
    MCS726-75

    Performance test results

    RB912UAG-5HPnDAR9342 1G 1 port test
    ModeConfiguration64 byte512 byte1518 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)269.6176.9232.0983.781.0995.3
    Bridging25 bridge filter rules87.657.586.0364.681.0995.3
    Routingnone (fast path)226.9148.8210.0890.481.0995.3
    Routing25 simple queues106.669.9103.9440.581.0995.3
    Routing25 ip filter rules60.539.759.6252.756.8698.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
