KNOT Embedded LTE4
631,70 kr
Exkl. moms
Delbetala från 131,00 kr per månad
Leverans inom 2-5 dagarIndustrial LTE/BLE/GNSS connectivity that fits anywhere.
Originally designed for coffee and vending machines – perfect
for all kinds of industrial automation.
Leveransvillkor

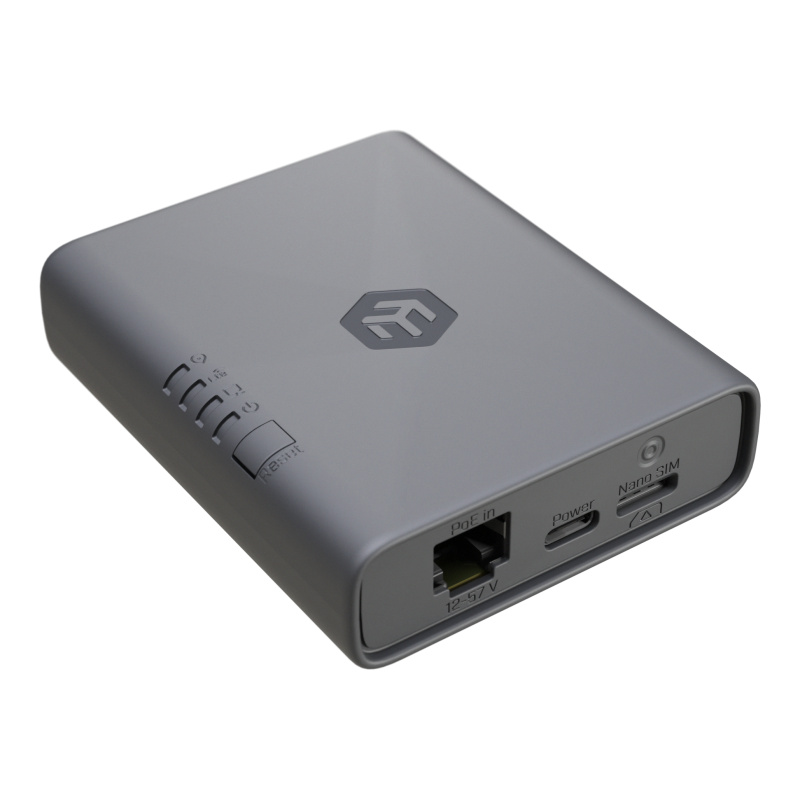

KNOT Embedded LTE4 is a tiny but powerful industrial LTE gateway designed for integrators, automation specialists, and IoT system builders. It fits into tight spaces, mounts directly on a DIN rail, and delivers reliable LTE Cat4 connectivity with Bluetooth and GNSS support.
Use it as a primary gateway, a backup link, or an IoT data collection node – everything is powered by RouterOS for maximum flexibility.
Whether you’re building a new system or adding LTE to an existing installation, KNOT Embedded LTE4 adapts easily. It’s easy to integrate, easy to deploy, and built to perform in harsh environments – from smart city deployments to industrial automation and mobile tracking.
Specifications
| Details | |
|---|---|
| Product code | EC25-EU&KNe |
| Architecture | ARM 32-bit |
| CPU | CPU ARM 32-bit Cortex A7 up to 1.2 GHz |
| CPU core count | 1 |
| CPU nominal frequency | 1200 MHz |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 512 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (USB-C, PoE-IN) |
| USB-C input Voltage | 5 V |
| Max power consumption | 7 W |
| Max power consumption without attachments | 7 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 12-57 V |
Mobile
| Details | |||||||
|---|---|---|---|---|---|---|---|
| 2G Category | Class12 | ||||||
| 2G bands | 3 (1800MHz) 8 (900MHz) | ||||||
| 3G Category | R8 (42.2Mbps Downlink, 5.76Mbps Uplink) | ||||||
| 3G bands | 1 (2100MHz) | 8 (900MHz) | |||||
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) | ||||||
| MIMO DL | 2x2 | ||||||
| MIMO UL | 1x1 | ||||||
| LTE FDD bands | 1 (2100MHz) | 3 (1800MHz) | 7 (2600MHz) | 8 (900 MHz) | 20 (800MHz) | 28A (700 MHz) | |
| LTE TDD bands | 38 (2600MHz) | 40 (2300MHz) | 41 (2500MHz) | ||||
| TAC | 86554604 | ||||||
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
| Number of 1G Ethernet ports with PoE-in | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | Modem (Nano SIM) |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Bluetooth version | 5.1 |
| GPS RF connector type | SMA |
| eSIM | YES |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
Included parts
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
