    wAP ac LTE6 Kit

    189,80 $
    Exkl. moms

    Powerful and versatile dual-band wireless access point with CAT6 LTE support

    Kvantitet
    Backorder



    Leveransvillkor

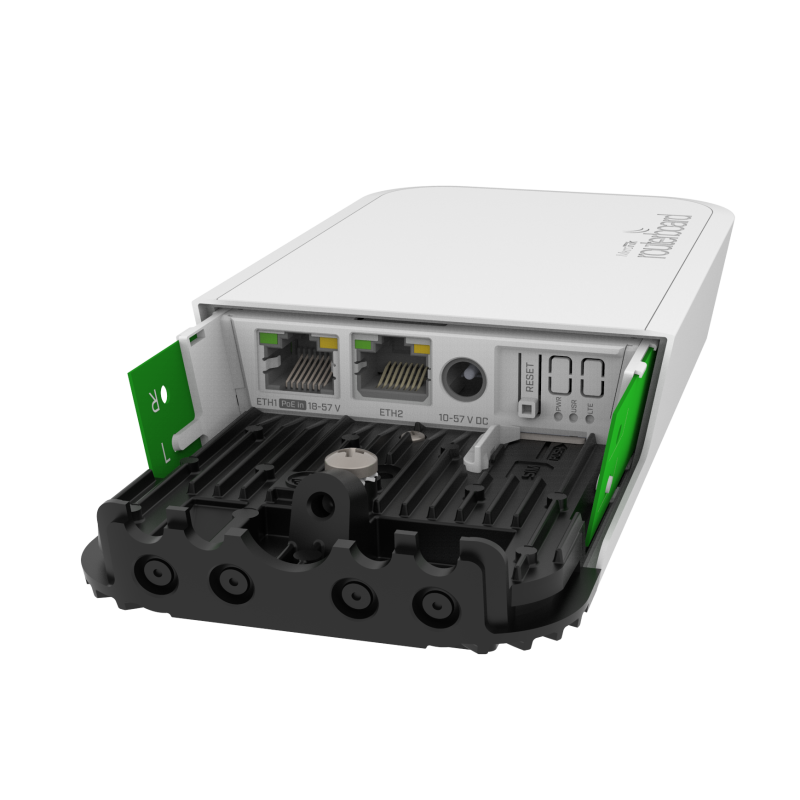

    1776,06A small package with huge ambition – the wAP ac LTE6 kit is an upgrade of our extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on the popular weatherproof wAP form factor. Its new CAT6 LTE modem enables even greater download speed – up to 300 Mbps!

    CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.

    wAP ac LTE6 kit has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can enjoy smooth wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C° and can be easily mounted on walls, ceilings or poles.

    Specifications

    Details
    Product codeRBwAPGR-5HacD2HnD&R11e-LTE6
    ArchitectureARM 32bit
    CPUIPQ-4018
    CPU core count4
    CPU nominal frequency716 MHz
    RouterOS license4
    Size of RAM128 MB
    Storage size16 MB
    Storage typeFLASH
    MTBFApproximately 200'000 hours at 25C
    Tested ambient temperature-30°C to 60°C
    IPsec hardware accelerationYes

    Powering

    Details
    Number of DC inputs2 (DC jack, PoE-IN)
    DC jack input Voltage10-57 V
    Max power consumption16 W
    Max power consumption without attachments10 W
    FAN countPassive
    PoE in802.3af/at
    PoE in input Voltage18-57 V

    Mobile

    Details
    2G CategoryClass12
    2G bands2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
    3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
    3G bands1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
    LTE Category6 (300Mbit/s Downlink, 50Mbit/s Uplink)
    LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
    LTE TDD bands38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate300 Mbit/s
    Wireless 2.4 GHz number of chains2
    Wireless 2.4 GHz standards802.11b/g/n
    Antenna gain dBi for 2.4 GHz2.5
    Wireless 2.4 GHz chip modelIPQ-4018
    Wireless 2.4 GHz generationWi-Fi 4
    Wireless 5 GHz Max data rate867 Mbit/s
    Wireless 5 GHz number of chains2
    Wireless 5 GHz standards802.11a/n/ac
    Antenna gain dBi for 5 GHz2.5
    Wireless 5 GHz chip modelIPQ-4018
    Wireless 5 GHz generationWi-Fi 5

    Ethernet

    Details
    10/100/1000 Ethernet ports2

    Peripherals

    Details
    Number of SIM slots1 Modem (Micro SIM)
    MiniPCI-e slots1

    Other

    Details
    PCB temperature monitorYes
    Voltage MonitorYes

    Certification & Approvals

    Details
    CertificationCE, FCC, IC, EAC, ROHS
    IPIP54

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-100
    11MBit/s22-94
    6MBit/s23-95
    54MBit/s19-78
    MCS023-95
    MCS718-73

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s24-95
    54MBit/s20-78
    MCS024-95
    MCS719-73
    MCS917-68

    Included parts

    RBwAPGR-5HacD2HnD&R11e-LTE6
