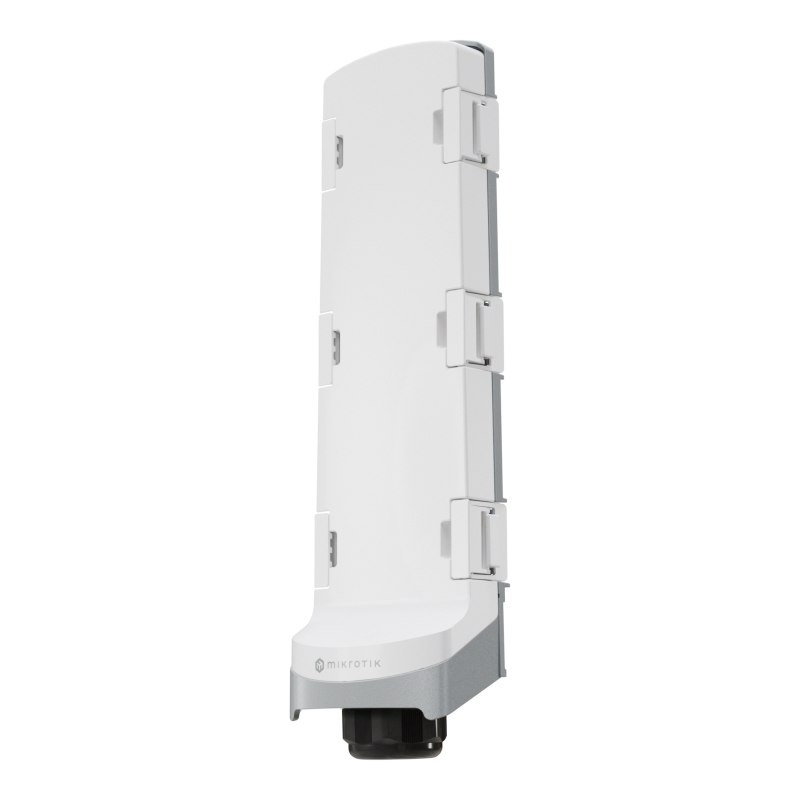

GPERx6 CSS606-1G-2Gi-3S+OUT
122,26 $
Exkl. moms Leverans inom 2-5 dagar
Cut the cable clutter – extend power and fiber together, anywhere – with a single hybrid cable. At the far end, the GPERx6 splits it all neatly: SFP+ for further long-distance uplinks, PoE-out for powering other switches or access points, and DC outputs for IoT gear or specialized devices.
Leveransvillkor
Built for the toughest deployments
The outdoors can be brutal: blistering heat, freezing cold, wind, rain. The elements attack your gear. The wiring is a nightmare. The GPERx6 solves both problems – a rugged, outdoor-ready switch that cuts cable clutter and keeps deployments simple.
On the surface, it’s straightforward:
• 3 Gigabit Ethernet ports with PoE-in (#1) and PoE-out (#2 & #3)
• 3× 10G SFP+ cages for long-distance fiber
• 3 DC outputs for devices that don’t use PoE, for example, IoT setups
• Heavy-duty IP66 enclosure with handy mounting hardware
• A dedicated 10G switch chip (tested in ISP favorites like the netPower Lite 7R)
But the real advantage is how it allows you to manage power and data over long distances (1-2 km) even in the trickiest scenarios!
Specifications
| Details | |
|---|---|
| Product code | CSS606-1G-2Gi-3S+OUT |
| Switch chip model | 88E6193X |
| Operating System | SwOS |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $139.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (2-pin screw terminal, PoE-in) |
| 2-pin terminal | 12-57 V |
| PoE-in Voltage | 42-57 V |
| PoE-in | 802.3 bt |
| PoE-Out | Passive PoE up to 57 V (ether2- ether3) |
| Max out per port output (input < 30 V) | 1.2A |
| Max out per port output (input > 30 V) | 0.625 A |
| Max total out | 2.4 A |
| Number of DC-out ports | 3, DC1-DC3 Max total out 3.6 A |
| Max power consumption (without attachments) | 6W |
| Max power consumption | 160W |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 3 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 3 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 66 |
