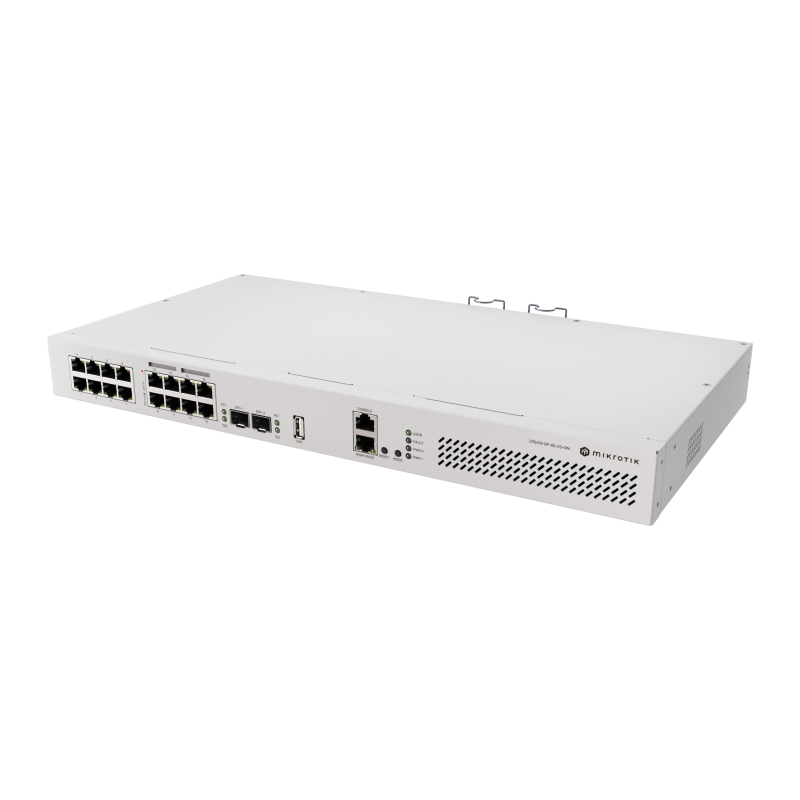

CRS418-8P-8G-2S+RM
3 672,00 kr
Exkl. moms
Delbetala från 231,00 kr per månad
You wanted a switch that could do more. So we built one that does everything! 16x (+1) Gigabit Ethernet ports (8x with PoE-out), dual 10G uplinks, and a powerful quad-core 2.2 GHz ARM CPU. Powerful enough to replace most small/medium office routers, ~3x faster than a CRS320 or a CRS328… and for a better price!
Leveransvillkor
Why settle for just a simple switch when you can have PoE-out, high-speed fiber uplinks, USB storage compatibility, advanced network control/monitoring, and enough processing power even for some routing or L3 HW offloading… in a single 1U device and for the best price on the market?
The CRS418-8P-8G-2S+RM combines 16 Gigabit Ethernet ports (eight of them with PoE-out!), two 10G SFP+ cages, USB 3 connectivity, and a powerful quad-core 2.2 GHz CPU in a clean, durable rackmount enclosure. Also, there’s a Gigabit management port with a direct CPU line.
This is a serious upgrade for anyone looking to replace a jungle of devices with one smart multitasker – built for real routing workloads, high-bandwidth uplinks, and clean cable management. Whether you’re powering up access points and CCTV cameras, running a fast NAS with a bunch of modern workstations, or managing the routing in your mid-sized office, CRS418 handles it all with ease – and on a budget!
CRS418-8P-8G-2S+RM is more than a switch. It’s a real multi-tasking champion that keeps your network lean and your server room clean.
Specifications
| Details | |
|---|---|
| Product code | CRS418-8P-8G-2S+RM |
| Architecture | ARM 64bit |
| CPU | IPQ-8072 |
| CPU core count | 4 |
| CPU nominal frequency | 2208 MHz |
| Switch chip model | 98DX226S |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -20°C to 70°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of PSU slots | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 215 W |
| Max power consumption without attachments | 28 W |
| Cooling type | 4 fans |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1.1 A |
| Max out per port output (input 30-57 V) | 0.55 A |
| Max total out (A) | 5.4 A |
| Total output current | 5.4 |
| Total output power | 150 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 17 |
| Number of 1G Ethernet ports with PoE-out | 8 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
Included parts
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
