RB4011iGS+5HacQ2HnD-IN

256,10 $

Exkl. moms Leverans inom 2-5 dagar

Förpackningsinfo
Minsta antal	1st
Antal per kartong	10st

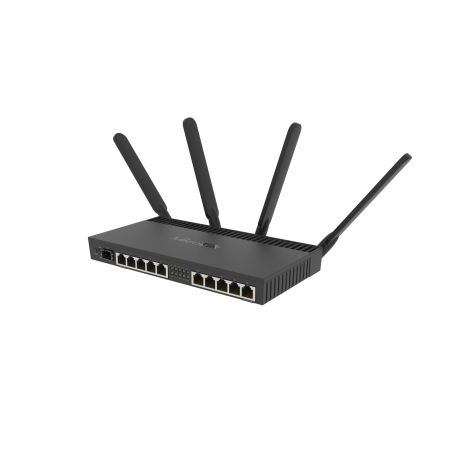

Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP+ 10Gbps cage, dual band 2.4GHz / 5GHz 4x4 MIMO 802.11a/b/g/n/ac wireless and desktop case

Leveransvillkor

Beskrivning
Produktdetaljer

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.

We have two versions available.

RB4011iGS+5HacQ2HnD-IN-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Note: Passive DAC (MikroTik S+DA0001/S+DA0003) are not supported.

Specifications

Details
Product code	RB4011iGS+5HacQ2HnD-IN
Architecture	ARM 32bit
CPU	AL21400
CPU core count	4
CPU nominal frequency	1.4 GHz
Dimensions	228 x 120 x 30 mm
RouterOS license	5
Operating System	RouterOS
Size of RAM	1 GB
Storage size	512 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 45°C
IPsec hardware acceleration	Yes

Wireless capabilities

Details
Wireless 5 GHz Max data rate	1733 Mbit/s
Wireless 5 GHz number of chains	4
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	3
Wireless 5 GHz chip model	QCA9984
Wireless 5 GHz generation	Wi-Fi 5
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	3
Wireless 2.4 GHz chip model	R11e-2HnD
Wireless 2.4 GHz generation	Wi-Fi 4
AC speed	AC2000

Ethernet

Details
10/100/1000 Ethernet ports	10

Fiber

Details
SFP+ ports	1

Peripherals

Details
MiniPCI-e slots	1
Serial console port	RJ45

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	44 W
Max power consumption without attachments	23 W
FAN count	Passive
PoE in	Passive PoE
PoE in input Voltage	18-57 V

PoE-out

Details
PoE-out ports	Ether10
PoE out	Passive PoE up to 57V
Max out per port output (input < 30 V)	600 mA
Max out per port output (input > 30 V)	420 mA
Max total out (A)	600 mA

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	IP20

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Wireless specifications

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	33	-96
54MBit/s	29	-81
MCS0	33	-96
MCS7	28	-77
MCS9	26	-72

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	28	-100
11MBit/s	28	-94
6MBit/s	29	-96
54MBit/s	25	-80
MCS0	26	-96
MCS7	24	-79

Included parts

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
