    wAP LTE Kit

    1 437,54 kr
    Exkl. moms 2-3

    Small weatherproof wireless access point with International LTE modem

    Kvantitet
    I Lager

      Leveransvillkor

    Vi använder DHL & Postnord för leveranser

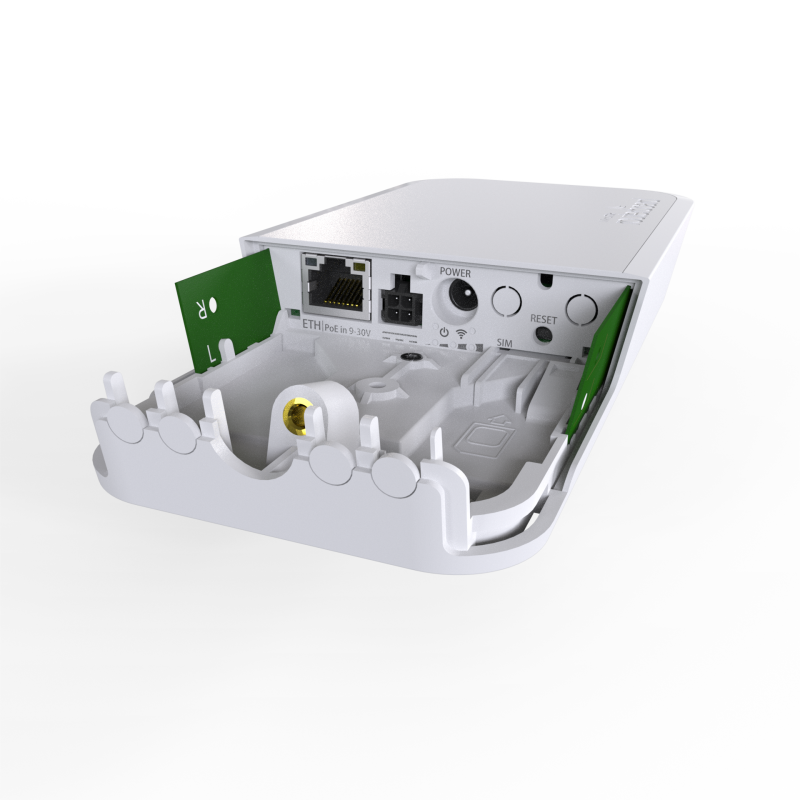

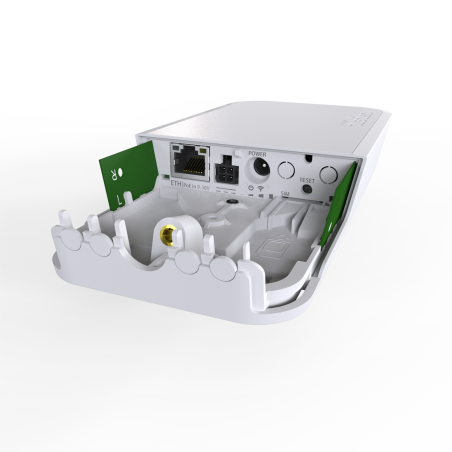

    The wAP LTE is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.

    LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.

    RBwAPR-2nD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.

    Specifications

    Details
    Product codeRBwAPR-2nD&R11e-LTE
    ArchitectureMIPSBE
    CPUQCA9531
    CPU core count1
    CPU nominal frequency650 MHz
    Dimensions185 x 85 x 30 mm
    RouterOS license4
    Operating System RouterOS
    Size of RAM64 MB
    Storage size16 MB
    Storage typeFLASH
    MTBFApproximately 200'000 hours at 25C
    Tested ambient temperature-40°C to 60°C

    Powering

    Details
    Number of DC inputs3 (DC jack, PoE-IN, Automotive)
    DC jack input Voltage9-30 V
    Automotive input Voltage9-30 V
    Max power consumption8 W
    FAN countPassive
    PoE inPassive PoE
    PoE in input Voltage9-30 V

    Mobile

    Details
    2G CategoryClass12
    2G bands2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
    3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink)
    3G bands1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
    LTE Category4 (150Mbps Downlink, 50Mbps Uplink)
    LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
    LTE TDD bands38 (2600MHz) / 40 (2300MHz)

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate300 Mbit/s
    Wireless 2.4 GHz number of chains2
    Wireless 2.4 GHz standards802.11b/g/n
    Antenna gain dBi for 2.4 GHz2
    Wireless 2.4 GHz chip modelQCA9531
    Wireless 2.4 GHz generationWi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports1

    Peripherals

    Details
    Number of SIM slots1 Modem (Mini SIM)
    MiniPCI-e slots1

    Other

    Details
    PCB temperature monitorYes
    Voltage MonitorYes

    Certification & Approvals

    Details
    CertificationCE, FCC, IC, E-MARK, EAC, ROHS
    IPIP54

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71

    Included parts

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

    RBwAPR-2nD&R11e-LTE
    53 st
