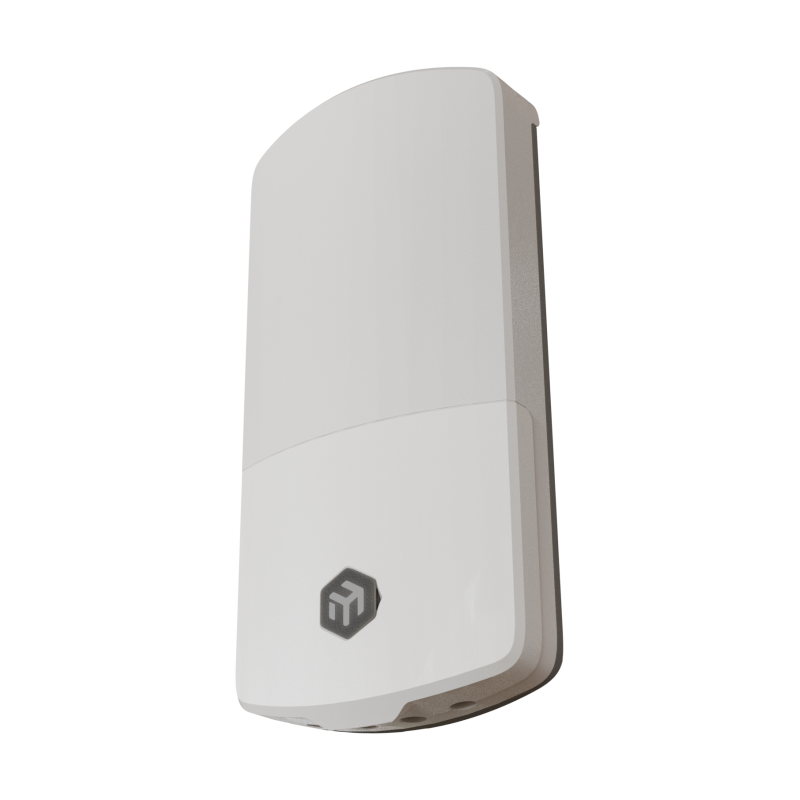

wAP ax LTE7 kit
145,73 $
Exkl. moms Leverans inom 2-5 dagar
The new wAP LTE7 kit is an evolution of the popular wAP ac LTE6. Now – with Wi-Fi 6, CAT7 LTE, a stronger ARM platform, and improved antenna gain. The unit comes in our improved next-gen IP66 weatherproof enclosure.
Leveransvillkor
wAP ax LTE7 kit brings fast and reliable Wi-Fi 6 to your countryside getaway or any other challenging environment – like a rural gas station or a bus stop. The updated enclosure enhances durability even further and features a concealed anti-vandal screw behind the MikroTik logo for added security..
Now upgraded with a CAT7 LTE modem, doubled upload speeds, and a more powerful ARM platform, this generation raises the performance bar without changing what people love about wAP or raising the price.
A mighty dual-band, dual-chain (2x2 MIMO) radio ensures strong wireless coverage across your home, yard, or business premises – enhanced by higher antenna gain and a redesigned LTE antenna system for improved signal quality, greater range, and better stability in challenging environments.
Stealthy Design – Weatherproof and Vandalproof
wAP ax LTE7 kit is designed to blend into any environment. Its simple, elegant design doesn’t attract any unwanted attention, making it perfect for busy public spaces or private properties alike. wAP can be securely fixed to any external wall or roof from the inside of the case. A designated indentation at the back of the enclosure marks the drill point for a cable pass-through, enabling discreet and secure wall-mounted installations.
Spesifications
| Product code | wAPGR-5HaxD2HaxD&R11e-LTE7 |
| Architecture | ARM 64bit |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -30°C to 70°C |
Powering
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 13 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
Mobile
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
| 3G bands | 1 (2100 MHz) |
| 3 (1800 MHz) | |
| 5 (850 MHz) | |
| 8 (900 MHz) | |
| LTE Category | 7 (DL: 300 Mbps; UL: 100 Mbps) |
| MIMO DL | 2x2 |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100 MHz) |
| 3 (1800 MHz) | |
| 5 (850 MHz) | |
| 7 (2600 MHz) | |
| 8 (900 MHz) | |
| 20 (800 MHz) | |
| 28 (700 MHz) | |
| 32 (1500 MHz) | |
| LTE TDD bands | 38 (2600 MHz) |
| 40 (2300 MHz) | |
| 41 (2500 MHz) | |
| TAC | 35312597 |
Wireless specifications
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 6.9 |
| Wireless 2.4 GHz chip model | IPQ-5010 |
| Wireless 2.4 GHz generation | WiFi 6 |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 7 |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | WiFI 6 |
Ethernet
| 10/100/1000 Ethernet ports | 2 |
Peripherals
| Number of SIM slots | 1 Modem (Micro SIM) |
| MiniPCI-e slots | 1 |
Other
| CPU temperature monitor | YES |
| PCB temperature monitor | YES |
| Voltage Monitor | YES |
Certification & Approvals
| Certification | CE, EAC, ROHS | |
| IP | 66 |
Included parts
wAPGR-5HaxD2HaxD&R11e-LTE7
