    LtAP LTE6 kit

    1 544,99 kr
    Exkl. moms
    2-3

    An upgrade of the heavy-duty LTE access point with GPS support

    Kvantitet
    I Lager

      Leveransvillkor

    Vi använder Postnord för leveranser

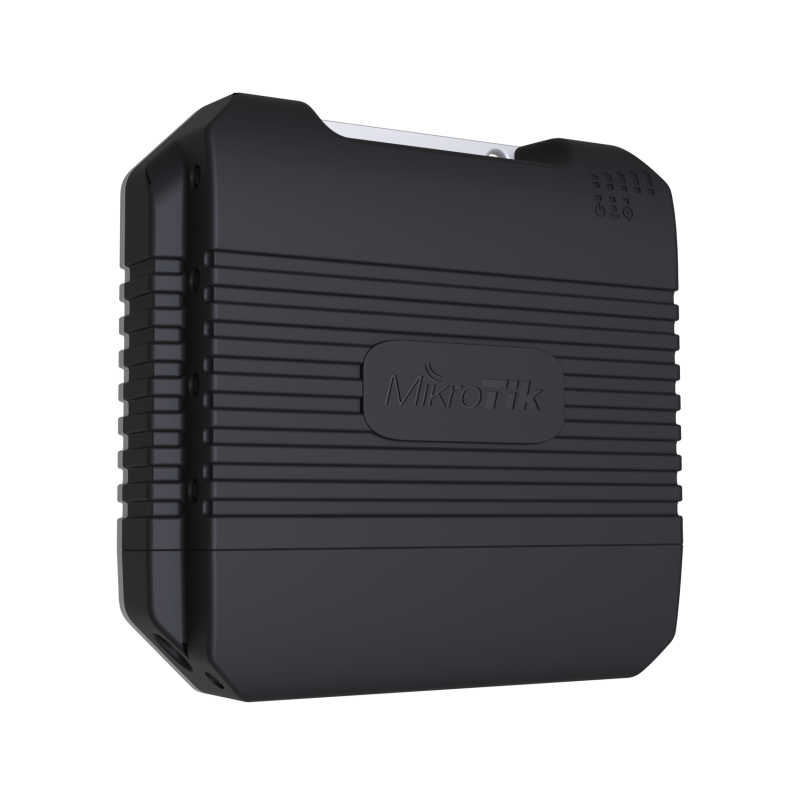

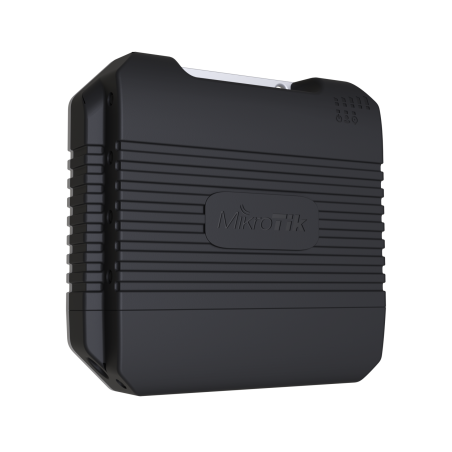

    LtAP LTE6 kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in CAT6 cellular modem that supports 4G (LTE) connectivity out of the box – with up to 300 Mbps download speed!

    • 2.4 GHz AP in a rugged case

    • LTE installed in miniPCIe slot

    • Second miniPCIe slot for expansions

    • Three Mini SIM slots

    • Gigabit Ethernet port

    • Built-in GPS

    • Many powering options (DC jack, POE-in, automotive)

    • Serial port and full size USB for other devices

    • Perfect for cars or outdoor mobile applications

    CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.

    Specifications

    Details
    Product codeRBLtAP-2HnD&R11e-LTE6
    ArchitectureMMIPS
    CPUMT7621A
    CPU core count2
    CPU nominal frequency880 MHz
    CPU Threads count4
    RouterOS license4
    Operating System RouterOS
    Size of RAM128 MB
    Storage size16 MB
    Storage typeFLASH
    MTBFApproximately 200'000 hours at 25C
    Tested ambient temperature-30°C to 70°C
    IPsec hardware accelerationYes

    Powering

    Details
    Number of DC inputs3 (DC jack, PoE-IN, Automotive)
    DC jack input Voltage12-30 V
    Automotive input Voltage12-27 V
    Max power consumption24 W
    Max power consumption without attachments12 W
    FAN countPassive
    PoE inPassive PoE
    PoE in input Voltage12-30 V

    Mobile

    Details
    2G CategoryClass12
    2G bands2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
    3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
    3G bands1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
    LTE Category6 (300Mbit/s Downlink, 50Mbit/s Uplink)
    LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
    LTE TDD bands38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate300 Mbit/s
    Wireless 2.4 GHz number of chains2
    Wireless 2.4 GHz standards802.11b/g/n
    Antenna gain dBi for 2.4 GHz2.5
    Wireless 2.4 GHz chip modelAR9382
    Wireless 2.4 GHz generationWi-Fi 4

    Ethernet

    Details
    10/100/1000 Ethernet ports1

    Peripherals

    Details
    Number of SIM slots3 Modem (Mini SIM)
    MiniPCI-e slots2
    Serial console portRS232
    Number of USB ports1
    USB Power ResetYes
    USB slot typeUSB type A
    Max USB current (A)1

    Other

    Details
    PCB temperature monitorYes
    Voltage MonitorYes
    GNSS standardsGPS

    Certification & Approvals

    Details
    CertificationCE, FCC, IC, E-MARK, EAC, ROHS
    IPIP54

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s25-100
    11MBit/s25-94
    6MBit/s26-96
    54MBit/s23-78
    MCS026-96
    MCS722-73

    Included parts

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

    m RBLtAP-2HnD&R11e-LTE6
