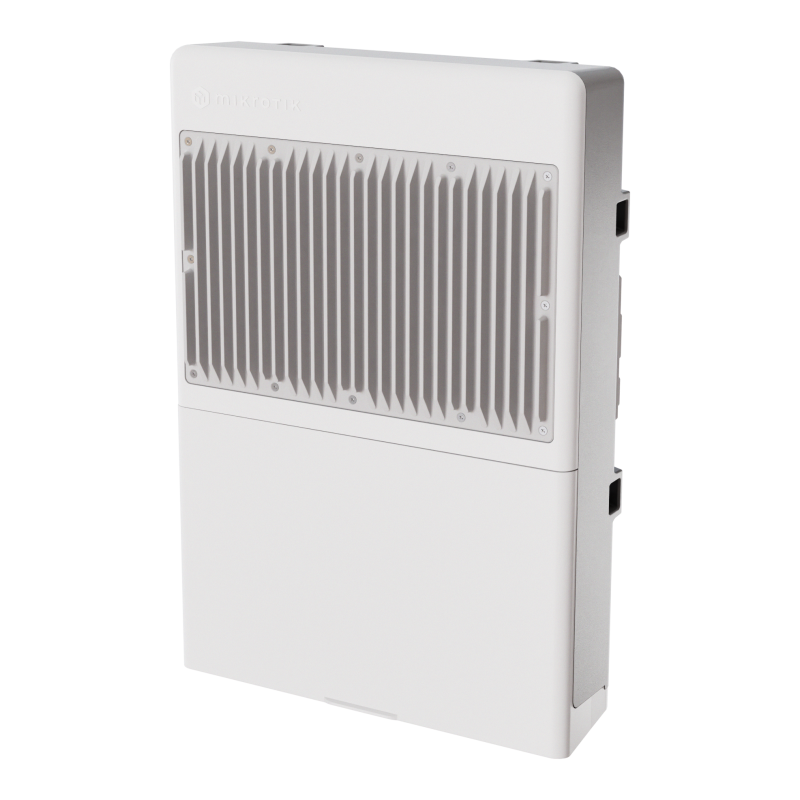

netPower Lite 8P

177,65 $

Exkl. moms

Förpackningsinfo
Minsta antal	1st
Antal per kartong	5st

Low-cost. Tough. And always ON! Compact PoE switch with built-in UPS and smart battery charger – because your CCTV cameras and access points deserve true off-the-grid resilience.

Leveransvillkor

Beskrivning
Produktdetaljer

Power cuts shouldn’t mean downtime. The netPower Lite 8P delivers reliable Power-over-Ethernet even when the grid goes dark. The integrated UPS and smart charger work with your external 24 V battery – and can deliver high-voltage PoE-out even from low-voltage DC sources, making the netPower a perfect match for CCTV, offices, apartment buildings, and smart-city installations.

Specifications

Details
Product code	CSS610-8P-2S+OUT
Switch chip model	88E6193
Operating System	SwOS Lite
Storage size	64 kB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Ethernet

Details
Number of 10/100/100M Ethernet ports	8
Number of 1G Ethernet ports with PoE-out	8

Fiber

SFP+ ports

PoE-OUT

Details
PoE-out ports	ether1-Ethjer8
PoE out	802.3af/at
Low voltage PoE-Out current limit	1A
High voltage PoE-Out current limit	0,64A
Total output power	120W

Powering

Details
Number of DC inputs	3 (2-poin terminal)
2-pin terminal input Voltage	24-57 V (Battery 22-30 V)
Max power consumption	208 W
Max power consumption without attachments	9 W
Cooling type	Passive
