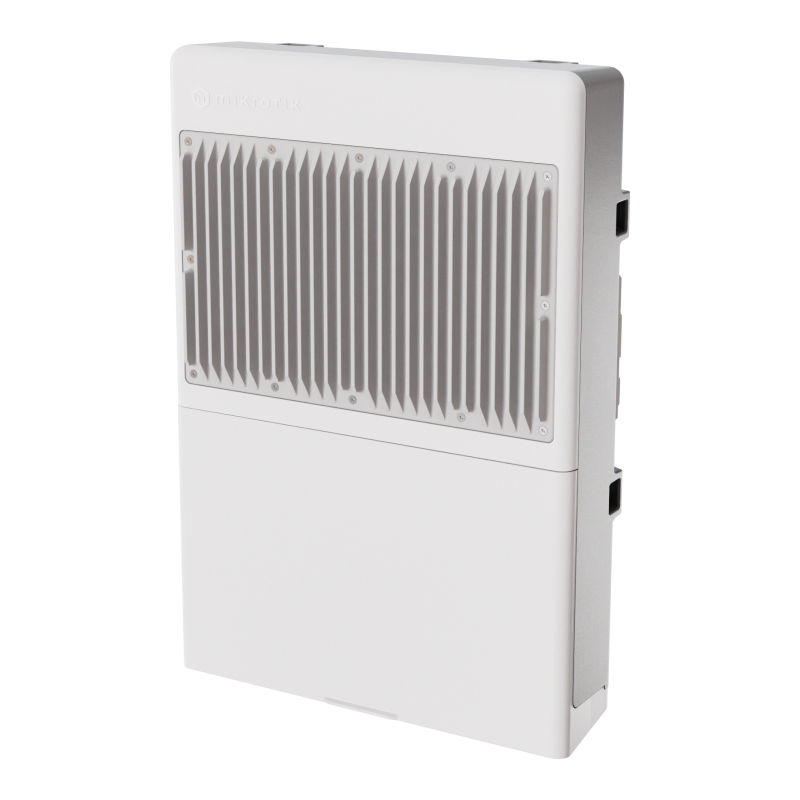

netPower Lite 8P
177,65 $
Exkl. moms Leverans inom 2-5 dagar
| Förpackningsinfo | |
| Minsta antal | 1st |
| Antal per kartong | 5st |
Low-cost. Tough. And always ON! Compact PoE switch with built-in UPS and smart battery charger – because your CCTV cameras and access points deserve true off-the-grid resilience.
Leveransvillkor
Power cuts shouldn’t mean downtime. The netPower Lite 8P delivers reliable Power-over-Ethernet even when the grid goes dark. The integrated UPS and smart charger work with your external 24 V battery – and can deliver high-voltage PoE-out even from low-voltage DC sources, making the netPower a perfect match for CCTV, offices, apartment buildings, and smart-city installations.
Specifications
| Details | |
|---|---|
| Product code | CSS610-8P-2S+OUT |
| Switch chip model | 88E6193 |
| Operating System | SwOS Lite |
| Storage size | 64 kB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Ethernet
| Details | |
|---|---|
| Number of 10/100/100M Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 8 |
Fiber
| SFP+ ports | 2 |
PoE-OUT
| Details | |
|---|---|
| PoE-out ports | ether1-Ethjer8 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 1A |
| High voltage PoE-Out current limit | 0,64A |
| Total output power | 120W |
Powering
| Details | |
|---|---|
| Number of DC inputs | 3 (2-poin terminal) |
| 2-pin terminal input Voltage | 24-57 V (Battery 22-30 V) |
| Max power consumption | 208 W |
| Max power consumption without attachments | 9 W |
| Cooling type | Passive |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 54 |
Other
CSS610-8P-2S+OUT
