CSS318-16G-2S+IN
126,00 $
Exkl. moms Leverans inom 2-5 dagar

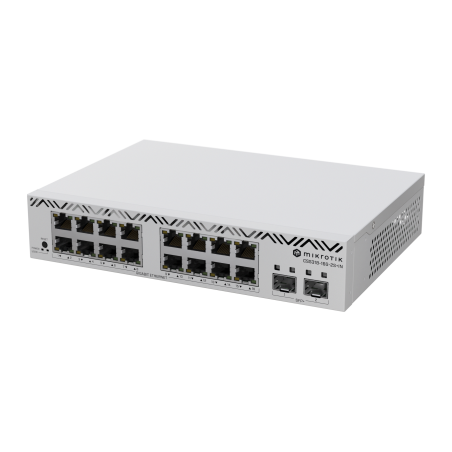

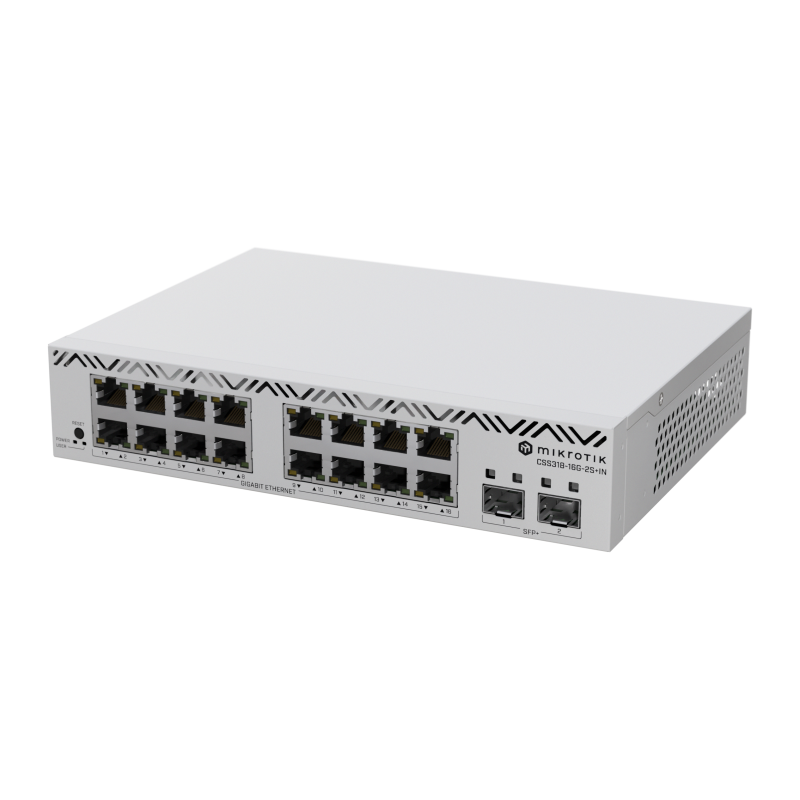

With 16 Gigabit Ethernet ports and 2 SFP+ 10G uplink ports, you get all the connectivity you need without unnecessary bulk. Stack two units side by side in a single 1U rack space for even greater flexibility and scalability.
Leveransvillkor
The CSS318-16G-2S+IN is a perfect fit for setups where 24 ports are too many and 8 ports just aren’t enough. Its compact 10-inch form factor and cost-effective design make it the ideal solution for small and medium-sized offices, home networks, or rackmount environments where space and efficiency are key.
With 16 Gigabit Ethernet ports and 2 SFP+ 10G uplink ports, you get all the connectivity you need without unnecessary bulk. With its versatile mounting options, the CSS318-16G-2S+ can be installed in 10-inch racks, standard 19-inch racks, or even side-by-side—fitting two switches in a single 1U 19-inch space.
Effortless Configuration with SwOS
Configuration is effortless with MikroTik’s lightweight SwOS. Accessible directly from your web browser, SwOS gives you the core functionality of a managed switch and more:
- Port-to-port forwarding
- Broadcast storm control
- MAC filtering
- VLAN configuration
- Traffic mirroring
- Bandwidth limitation
- Adjustment of MAC and IP header fields
Energy Efficient and Reliable
The CSS318 consumes just 10W without attachments and up to 13W under full load, keeping your network reliable while saving power.
Compact, Scalable, and Affordable
Compact, scalable, and simple to configure — the CSS318-16G-2S+IN is ready to enhance your network at an unbeatable price.
Specifications
| Details | |
|---|---|
| Product code | CSS318-16G-2S+IN |
| Switch chip model | 98DX2518 |
| Operating System | SwOS |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $139.00 |
Powering
| Details | |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 13 W |
| Max power consumption without attachments | 10 W |
| Cooling type | Passive |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 16 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
Switching results
| CSS318-16G-2S+IN | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 2,925.9 | 35,531.9 | 8,458.6 | 34,646.6 | 53,571.4 | 27,428.6 |
| Switching | Non blocking Layer 2 capacity | 2,925.9 | 71,063.7 | 8,458.6 | 69,293.2 | 53,571.4 | 54,857.1 |
| Switching | Non blocking Layer 1 throughput | 2,925.9 | 36,000.0 | 8,458.6 | 36,000.0 | 53,571.4 | 36,000.0 |
| Switching | Non blocking Layer 1 capacity | 2,925.9 | 72,000.0 | 8,458.6 | 72,000.0 | 53,571.4 | 72,000.0 |
Included parts
CSS318-16G-2S+IN
5 objekt

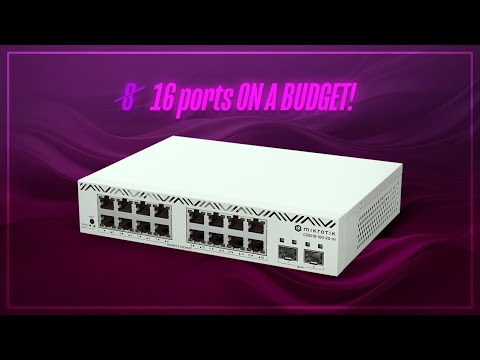

play_circle_filled CSS318
